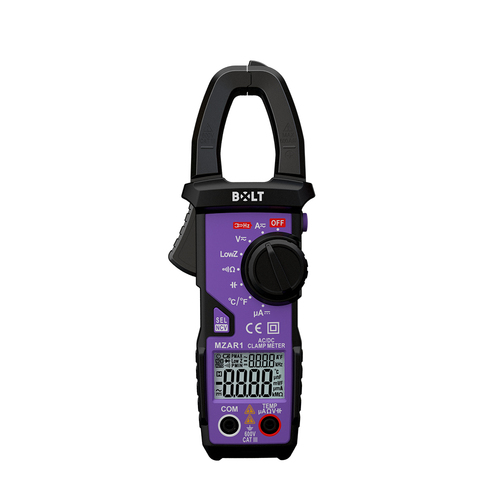

מד דיגיטאלי חכם - BOLT AC / DC Digital Clamp Meter.
בחירה אוטומטית למדידה ולטווח.
הגנת עומס יתר לכל טווחי המדידה.
אפשרות לשמירת מידע (DATA HOLD).
עומד בתקנים: ROHSEN61010-1 EN61010-2-03CAT.III600V.
| PECIFICATIONS |
RANGE |
ACCURACY |
| DCV |
0.5~600.0V |
±(0.5%+3) |
| ACV(40~65Hz) |
1.0~600V |
±(0.8%+5) |
| Ω |
0~10MΩ |
±(0.8%+3) |
| Continuity |
<30Ω |
<30Ω |
| ACA(40~65Hz) |
200mA~400A |
±(2.5%+5) |
| DCA |
400A~600A |
±(3%+5) |
| 300mA~600A |
±(3%+10) |
| Frequency |
40Hz-1000Hz |
1%rdg |
| FEATURE |
| Counts |
6000 |
| RANGE |
Auto |
| ACA(AC+DC) |
60A/600A |
| DCA |
60A/600A |
| DCV |
6V/60V/600V |
| ACV(AC+DC) |
6V/60V/600V |
| Continuity |
√ |
| Ω |
6kΩ/60kΩ/600kΩ/6MΩ/10MΩ |
| V/Ω/A Auto Scan |
√ |
| Frequency(Clamp) |
1KHz |
| Frequency(Voltage) |
1KHz |
| Data Hold |
√ |
| BackLight |
√ |
| NCV |
√ |
| Low Battery Indication |
√ |
| Auto Power Off |
√ |
| Dual Didplay |
√ |
| GENERAL |
| Power supply |
2×1.5V AAA Battery |
| Weight |
250g |
| Size |
187×65×38mm |
| Jaw Size |
φ24mm |
| Safety Rating |
EN61010-1,EN61010-2-032, EN61326,CAT.III 600V |
